消偏振分光棱镜(NPBS)



Description:

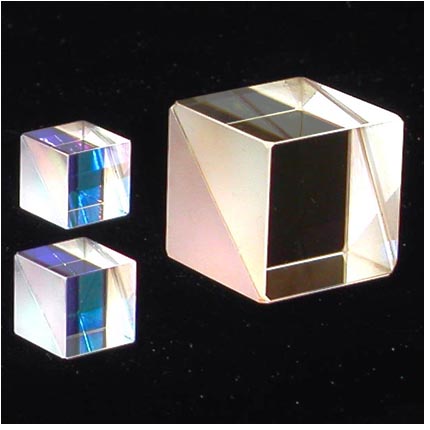

Non-Polarizing Cube Beamsplitter(NPBS Cube) consists of a pair of precision high tolerance right angle prisms cemented together with a metallic-dielectric coating on the hypotenuse of one of the prisms. The low polarization dependence of the metallic-dielectric coating allows the transmission and reflection for S- and P-polarization states to be within 5% of each other. This means that they will not change the state of polarization of the incident beam.



Features:

  • Low polarization dependence;

  • Low power application;

  • Not change the state of polarization of the incident beam.



Specifications:

Material                                       BK7 Optical  Glass or  equivalent
Dimension Tolerance±0.2mm
Surface Quality60/40 scratch/dig
Beam Deviation5 arc minutes
T/R50/50 ± 5%
Polarization difference<6%
Absorption<10%
AR Coating@450-680nm,R<0.5%, @720-1080nm,R<0.5%, @1100-1620nm,R<0.5%
